Weflo Valve Company
Weflo Valve, LLC specializes in the manufacture of UL / FM valve, hydrant, and accessory products for fire protection piping systems. We offer one of the broadest lines of UL / FM valve products in the industry. Weflo OS&Y and NRS Gate Valves are UL listed and FM approved in sizes through 24″. Weflo Dry Barrel and Wet Barrel Fire Hydrants are UL / FM in several different nozzle sizes and configurations.
Fire Valves
Fire Safe valves are valves of different types that are generally installed in piping systems where the process fluid(s) represent a potential fire hazard to ensure a safe and reliable shut-off in case of fire. To do so, they must be certified under the standards
Nominal Pressure: 300PSl
Conforms: ANSI 1 AWWA C515 Standard
Face to Face Standard : ASME B16.10
Sizes: 2½”, 3″, 4″, 5″, 6″, 8″, 10″, 12″
Flange Standard: ASME / ANSI B16.1 Class 125 or ASME / ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/ T9113.1
Groove Standard: ANSI / AWWA C606 or Metric
Approvals: FM, UL, CUL, NSF /ANSI61 & NSFIANSI 372
Maximum Working Pressure: 300PSI (Maximum Testing Pressure: 600 PSI) conforms to UL262, ULC / ORD C262-92 , FM 1120/ 1130
Maximum Working Temperature: 80°C/ 176°F
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
NPT plug on body with 2 operating nuts
Certified lead-free by NSF / ANSI 61 & NSF / ANSI 372 is available
Nominal Pressure: 300PSI
Conforms: ANSI / AWWA C515 Standard
Groove Standard: ANSI I AWWA C606 or Metric
Sizes: 2½”, 3″, 4″, 5″, 6″, 8″, 10″, 12″
Approvals: FM, UL, CUL, NSF/ANSI 61 & NSF/ANSI 372
Maximum Working Pressure: 300PSI (Maximum Testing Pressure: 600PSI) conforms to UL 262, ULC / ORD C262-92，FM 1120/1130
Maximum Working Temperature: 80°C/176°F
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
NPT plug on body with 2 operating nuts
Certified lead-free by NSF I ANSI 61 & NSF 1 ANSI 372 is available

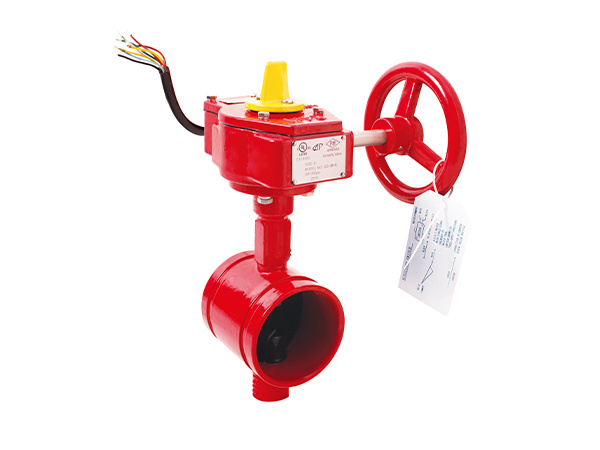

Waterway design
Connection:Grooved End
Sizes: 2″,2½”,3″,4″,5″,6″,8″,10″,12″
Maximum Working Pressure: 300 PSI(Maximum Testing Pressure:600 PSI) conforms to UL1091& ULC/ORD-C1091&FM1112
Maximum Working Temperature:80°℃/176°F
Application: Indoor & Outdoor Use,Fire inflow water,drain pipe,high-rising building fire fighting system,industrial factory building fire protection system
Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or coating upon reauest
Disc: DuctilelronEPDM Rubber Encapsulated
Top Flange Standard: ISO 5211
Certified lead-free by NSF/ANSI61&NSF/ANSI372is available
Conforms: ANSI/AW A C606 or Metric Standard ClearWaterway design
Connection: Grooved End
Sizes: 2″,2½”,3″,4″,5″,6″,8″
Maximum Working Pressure:300 PSI(Maximum Testing Pressure:600 PSI) conforms to UL1091& ULC/ORD-C1091&FM1112
Maximum Working Temperature: 80°℃/176°F
Application: Indoor& Outdoor Use,Fire inflow water,drain pipe,high-rising building fire fighting system, industrial factory building fire
protection system
Coating Details:Epoxy coated interior and exterior by Electrostatic Spray or coating upon request
Disc: Ductile Iron EPDM Rubber Encapsulated
Top Flange Standard: ISO 5211
Certified lead-free by NSF/ANSI61&NSF/ANSI372is available
